#!BPY

""" Registration info for Blender menus: <- these words are ignored
Name: 'module : elementary shapes'
Blender: 233
Group: 'Mesh'
Tip: 'return a few class of mesh class. '
"""

#----------------------------------------------
# Enregistrez ce script dans le répertoire /.blender/scripts
# Save this script in the  /.blender/scripts
#
#  Son nom : mod_form_elem.py
#  its name :
#
#  On peut l'utiliser tel quel mais il est surtout prévu pour etre appeler
#  a partir d'un autre script, voir exemple d'utilisation ci-dessous .
#
# We can use it as it is  but it was planed to be called from an other script,
# just see the amble behind this cell.

#  Briques elementaires
# (c) jm soler juillet 2004, released under Blender Artistic Licence
#    for the Blender 2.34 Python Scripts Bundle.
#----------------------------------------------
# Page officielle :
#   http://jmsoler.free.fr/didacticiel/blender/tutor/cpl_modelmshape.htm
# Communiquer les problemes et erreurs sur:
#   http://www.zoo-logique.org/3D.Blender/newsportal/thread.php?group=3D.Blender
#---------------------------------------------
# ce script est proposé sous Blender Artistic Licence pour etre associe
# a la distribution de Blender 2.33 et 2.34
#----------------------------------------------

import Blender
from Blender import Object,NMesh,Scene
from math import pi,cos,sin

def sphere(nom='sphereModele',type='ico',n=8,smooth=0):
            """ nam='sphereModele' = default name
                type='ico' = type au choix 'ico' ou 'UV',
                Seul le type 'UV' permet une modification du nombre de face.
                n=8        = number  of face for the  type UV
                smooth=0   = lissage automatique
            """
            ME=Object.New('Mesh',nom)
            Scene.getCurrent().link(ME)
            me=ME.getData()
            if type=='ico':
               icovert = [    [0.0,0.0,-2.0],
                [1.4472, -1.05144,-0.89443],
                [-0.55277, -1.70128,-0.89443],
                [-1.78885,0.0,-0.89443],
                [-0.55277,1.70128,-0.89443],
                [1.4472,1.05144,-0.89443],
                [0.55277,-1.70128,0.89443],
                [-1.4472,-1.05144,0.89443],
                [-1.4472,1.05144,0.89443],
                [0.55277,1.70128,0.89443],
                [1.78885,0.0,0.89443],
                [0.0,0.0,2.0]]

               icoface = [
                [1,0,2],
                [1,0,5],
                [2,0,3],
                [3,0,4],
                [4,0,5],
                [1,5,10],
                [2,1,6],
                [3,2,7],
                [4,3,8],
                [5,4,9],
                [10,1,6],
                [6,2,7],
                [7,3,8],
                [8,4,9],
                [9,5,10],
                [6,10,11],
                [7,6,11],
                [8,7,11],
                [9,8,11],
                [10,9,11]]
               for v in icovert:
                    vn=NMesh.Vert(v[0],v[1],v[2])
                    me.verts.append(vn)

               for f in icoface:
                    f_=NMesh.Face()
                    for v in f:
                       f_.append(me.verts[v])
                    f_.smooth=smooth
                    me.faces.append(f_)
            elif type=='UV':
                for i in range(0,n):
                    for j in range(0,n):
                        x=sin(j*pi*2.0/(n-1))*cos(-pi/2.0+i*pi/(n-1))*2.0
                        y=cos(j*pi*2.0/(n-1))*(cos(-pi/2.0+i*pi/(n-1)))*2.0
                        z=sin(-pi/2.0+i*pi/(n-1))*2.0
                        v=NMesh.Vert(x,y,z)
                        me.verts.append(v)
                n0=len(range(0,n))
                for i in range(0,n-1):
                    for j in range(0,n-1):
                        f=NMesh.Face()
                        f.v.append(me.verts[i*n0+j])
                        f.v.append(me.verts[i*n0+j+1])
                        f.v.append(me.verts[(i+1)*n0+j+1])
                        f.v.append(me.verts[(i+1)*n0+j])
                        me.faces.append(f)
                        f.smooth=smooth
                    #me.faces.append(f)
                    #f.smooth=smooth

            me.update()
            return ME

def cylindre(nom='cylindreModele',type='cyl',r1=1.0, r2=1.0,h=1.0, n=8,smooth=1):
          ME=Object.New('Mesh',nom)
          Scene.getCurrent().link(ME)
          me=ME.getData()
          r=[r1,r2]
          for i in range(0,2):
              for j in range(0,n):
                  x=sin(j*pi*2/(n))*r[i]
                  y=cos(j*pi*2/(n))*r[i]
                  z=float(i)*h
                  v=NMesh.Vert(x,y,z)
                  me.verts.append(v)

          vlist=[v for v in range(n)]
          vlist.append(0)
          #print vlist
          for i in range(n):
              f=NMesh.Face()
              f.v.append(me.verts[vlist[i]])
              f.v.append(me.verts[vlist[i+1]])
              f.v.append(me.verts[vlist[i+1]+n])
              f.v.append(me.verts[vlist[i]+n])
              me.faces.append(f)
              f.smooth=smooth

          if type=='cyl':
              pos=[[0.0,0.0,0.0],[0.0,0.0,h]]
              V0=NMesh.Vert(pos[0][0],pos[0][1],pos[0][2])
              V1=NMesh.Vert(pos[1][0],pos[1][1],pos[1][2])
              me.verts.append(V0)
              me.verts.append(V1)

              for i in range(n):
                  f=NMesh.Face()
                  f.v.append(me.verts[vlist[i]])
                  f.v.append(me.verts[vlist[i+1]])
                  f.v.append(me.verts[-2])
                  me.faces.append(f)
                  f.smooth=smooth

                  f=NMesh.Face()
                  f.v.append(me.verts[vlist[i+1]+n])
                  f.v.append(me.verts[vlist[i]+n])
                  f.v.append(me.verts[-1])
                  me.faces.append(f)
                  f.smooth=smooth

          me.update()
          return ME

def box(nom='boxModele',low=[-1.0,-1.0,-1.0],high=[1.0,1.0,1.0]):
                vertices_list=[
                    [low[0],low[1],low[2]],
                    [low[0],high[1],low[2]],
                    [high[0],high[1],low[2]],
                    [high[0],low[1],low[2]],
                    [low[0],low[1],high[2]],
                    [low[0],high[1],high[2]],
                    [high[0],high[1],high[2]],
                    [high[0],low[1],high[2]]
                ]

                faces_list=[[0,1,2,3],
                    [4,5,6,7],
                    [0,4,7,3],
                    [1,2,6,5],
                    [0,1,5,4],
                    [3,7,6,2]]
                ME=Object.New('Mesh',nom)
                Scene.getCurrent().link(ME)
                me=ME.getData()

                for coordinate in vertices_list:
                    v=NMesh.Vert(coordinate[0], coordinate[1], coordinate[2])
                    me.verts.append(v)

                for thisface in faces_list:
                    f=NMesh.Face()
                    for vertexpos in thisface:
                        f.append(me.verts[vertexpos])
                    me.faces.append(f)
                me.update()
                return ME



#
# on suppose que les points sont déjà organisés
#
def polygon( nom='polygoneModele',
                      pointlist=[[0.0,0.0,0.0],
                                     [0.0,1.0,0.0],
                                     [1.0,1.0,0.0],
                                     [1.0,0.0,0.0]]):
        ME=Object.New('Mesh',nom)
        Scene.getCurrent().link(ME)
        me=ME.getData()
        for p in pointlist:
            v=NMesh.Vert(p[0], p[1], p[2])
            me.verts.append(v)
        pf=[]
        for v in range(len(me.verts)-1):
               pf.append([v,v+1])
        pf.append([len(me.verts)-1,0])
        print 'len(pf)       ',len(pf)

        if  len(pf)%2==0 and len(pf)>2:
            P0=pf[:(len(pf))/2] ; P1=pf[len(pf)/2:]; P1.reverse()
            for s in range(len(P0)-1):
                f=NMesh.Face()
                table=[P0[s][0],P0[s][1],P1[s+1][0],P1[s+1][1]]
                for t in table:
                    f.v.append(me.verts[t])
                me.faces.append(f)

        elif len(pf)%2==1 and len(pf) >3 :

            P0=pf[:(len(pf)-1)/2];
            P1=pf[(len(pf)-1)/2:-1];
            P1.reverse()

            print P0,P1
            for s in range(len(P0)-1):
                f=NMesh.Face()
                table=[P0[s][0],P0[s][1],P1[s+1][0],P1[s+1][1]]
                print table
                for t in table:
                    f.v.append(me.verts[t])
                me.faces.append(f)

                f=NMesh.Face()
                table=[pf[-1][0],P0[0][0],P1[1][1]]
                print table
                for t in table:
                    f.v.append(me.verts[t])

                me.faces.append(f)

        elif len(pf) ==3 :
           f=Blender.NMesh.Face()
           table=[pf[0][0],pf[0][1],pf[1][1]]
           for t in table:f.v.append(me.verts[t])
           me.faces.append(f)
        me.update()
        return ME

def plane(nom='planeModele',X=1.0,Y=1.0):
        poly=polygon(nom,[[-X,-Y,0.0],[-X,Y,0.0],[X,Y,0.0],[X,-Y,0.0]])

def disque( nom='disqueModele',type='cyl',r=1.0,n=8):
        pointlist=[]
        for j in range(n):
            x=sin(j*pi*2.0/(n))*r
            y=cos(j*pi*2.0/(n))*r
            pointlist.append([x,y,0.0])
        if type=='plane':
           poly=polygon(nom,pointlist)
        else:
          ME=Object.New('Mesh',nom)
          Scene.getCurrent().link(ME)
          me=ME.getData()

          for p in pointlist:
            v=NMesh.Vert(p[0], p[1], p[2])
            me.verts.append(v)
          pos=[0.0,0.0,0.0]
          V0=NMesh.Vert(pos[0],pos[1],pos[2])
          me.verts.append(V0)
          vlist=[v for v in range(n)]
          vlist.append(0)
          for i in range(n):
                  f=NMesh.Face()
                  f.v.append(me.verts[vlist[i]])
                  f.v.append(me.verts[vlist[i+1]])
                  f.v.append(me.verts[-1])
                  me.faces.append(f)
          me.update()
          return ME

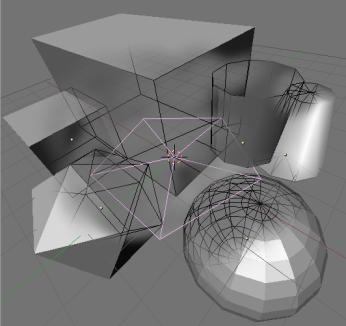

if __name__=="__main__" :
 sph=sphere('test2','ico',1)
 sph=sphere('test','UV',16)
 cyl=cylindre('test4','tube',1.0,1.0,2.0,10)
 cyl=cylindre('test3','cyl',1.0,0.5,2.0,10)
 cube=box('test5')
 cube=box('test6',[-4.0,-1.0,0.0],[1.0,2.0,3.0])
 poly=polygon('test7')
 d=disque('dd','cyl',2.5, 5)
 d=disque('dd0','plane',2.5, 5)

Exemple d'utilisation:



import Blender
from Blender import *

import mod_form_elem
# ===================================
# la ligne suivante n'est necessaire que si
# le fichier forme elementaire ne se trouve pas
# la pile des textes du fichier blender actuel
# ===================================
reload(mod_form_elem)
# ===================================
from mod_form_elem import *

sph=sphere('test2','ico',1)
sph=sphere('test','UV',16)

cyl=cylindre('test4','tube',1.0,1.0,2.0,10)
cyl=cylindre('test3','cyl',1.0,0.5,2.0,10)
cube=box('test5')
cube=box('test6',[-4.0,-1.0,0.0],[1.0,2.0,3.0])
poly=polygon('test7')

d=disque('dd',2.5, 5)
